RESTful API Design with Node.js & Express

This article will guide you through the process of designing and developing a RESTful API for managing Users, Products, and Orders data using Node.js and Express, with testing using Postman.

0. What is an API?#

API (Application Programming Interface) is an intermediary that connects different Software Applications allowing them to communicate and exchange data with each other.

0.1 Understanding API with a Simple Example#

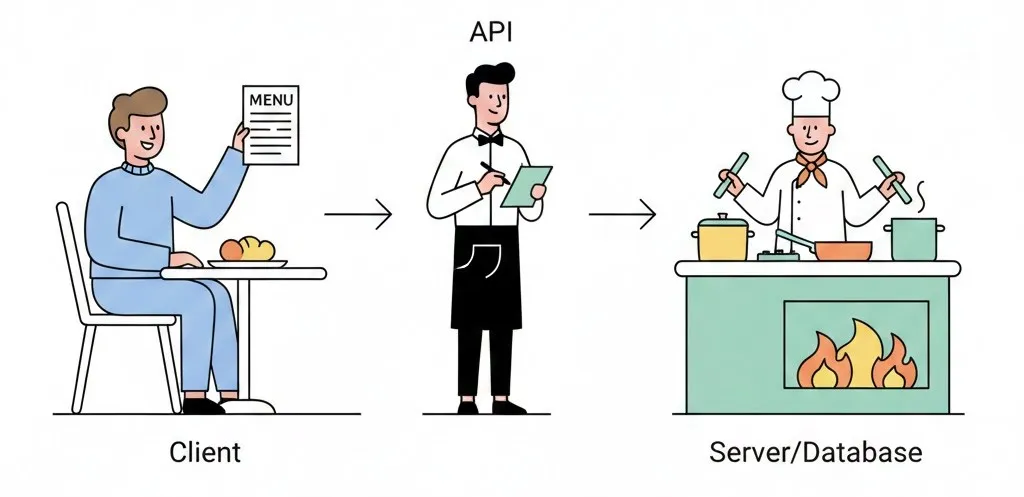

Think of a Restaurant as an analogy for API:

How it works:

1. Customer reads menu → Client reads API Documentation
2. Customer places order → Client sends HTTP Request
3. Waiter sends order to kitchen → API sends request to Server
4. Kitchen prepares food → Server processes/fetches data
5. Waiter serves food → API sends HTTP Response back

0.2 Types of APIs#

0.3 Why Use APIs?#

• Separate Frontend and Backend - Develop independently
• Multi-platform Support - One API serves Web, Mobile, IoT
• Easy Integration - Connect with other services (Google, Facebook, Payment)
• Scalability - Easy to scale the system

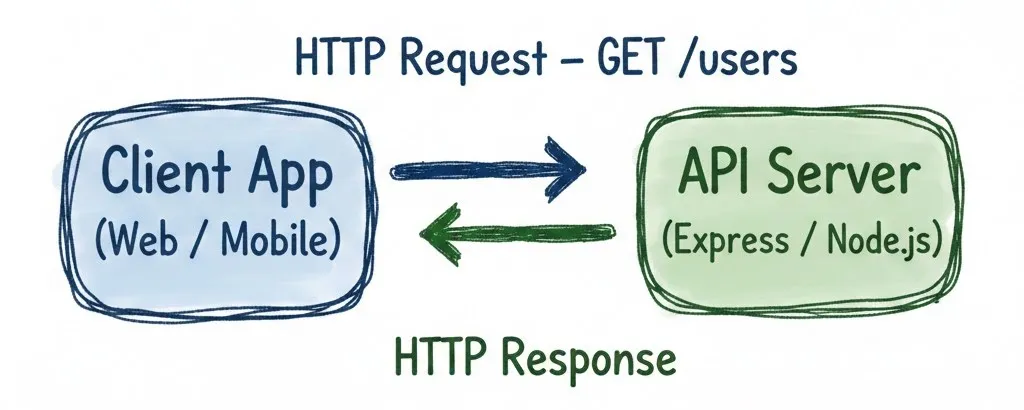

0.4 Components of REST API#

• Client - Requester (Browser, Mobile App, Postman)
• Request - HTTP request (Method + URL + Headers + Body)
• Server - Service provider (Express, Django, Laravel)
• Response - Result (Status Code + JSON Data)

1. Objectives#

Design and develop a RESTful API that supports CRUD operations for three related resource types:

• Users
• Products
• Orders

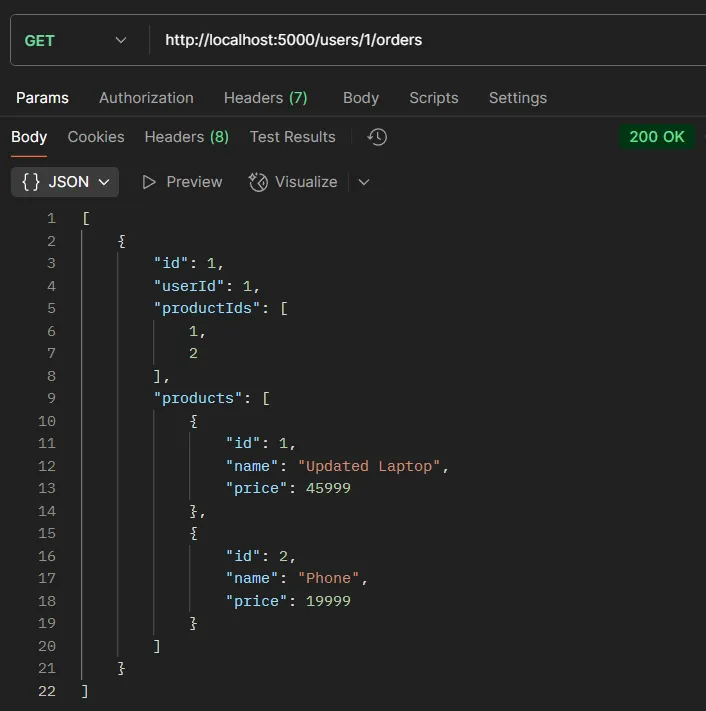

And develop APIs for nested resources to display all orders of a user and all products in an order.

2. URI Design Principles for RESTful API#

2.1 Use Nouns, Not Verbs

URI should represent “Resources” not “Actions”

✅ Correct:

• /users - User resource
• /orders/123 - Order resource with ID 123
• /products - Product resource

❌ Incorrect:

• /getUsers - Uses a verb
• /createOrder - Uses a verb
• /deleteProduct - Uses a verb

Reason: HTTP Method (GET, POST, PUT, DELETE) already indicates the action

2.2 Use Hierarchical Structure

Show resource relationships through the path

✅ Correct:

• /users/123/orders → All orders of user with ID 123
• /orders/456/items → All items in order with ID 456
• /categories/10/products → All products in category with ID 10

❌ Not Recommended:

• /getUserOrder?userId=123 → Same data, but the above is cleaner and more RESTful

Hierarchical URI clearly shows “resource relationships”:

• users is the main resource
• orders is a sub-resource that belongs to a specific user

2.3 Use Plural Nouns for Multiple Resources

✅ Correct:

• /products → Means multiple items
• /users → Means multiple items
• /orders → Means multiple items

❌ Incorrect:

• /product → Seems like only 1 item
• /user → Seems like only 1 item

2.4 Use Query Strings for Filtering/Sorting

✅ Correct:

• /products?sort=price&limit=10 → Sort by price, show 10 items
• /users?role=admin&active=true → Filter users who are admin and active
• /orders?status=pending&date=2024-01-01 → Filter orders by status and date

2.5 Avoid Common Mistakes

❌ Things to Avoid:

• Using uppercase: /Users → Should use /users
• Adding file extensions: /users.json → Should use /users
• Using underscores: /user_orders → Should use /user-orders or /users/123/orders

✅ Best Practices:

• Use all lowercase letters
• Use hyphen (-) instead of underscore (_)
• Use versioning at the beginning of URI: /v1/users, /v2/products

3. HTTP Status Codes You Should Know#

When a Client sends an HTTP request to an API Server, it receives an HTTP Response with a Status Code (3-digit number) to indicate the result: ✅ Success, ❌ Failure, or ℹ️ Other Status

3.1 Common Status Codes

3.2 Status Code Category Summary

• ✅ 2xx → Success
• ℹ️ 3xx → Redirection
• ⚠️ 4xx → Client Error
• 🛠️ 5xx → Server Error

4. Getting Started with RESTful API Development using Node.js, Express#

4.1 Install Required Software#

• Node.js Node.js ↗ Download the LTS version
• Postman Postman Downloads ↗

4.2 Project Setup#

mkdir demo-api
cd demo-api
npm init -y
npm install express cors body-parser
code .

Create index.js file

// Import required modules
const express = require('express');        // Framework for creating web server
const bodyParser = require('body-parser'); // JSON data parser from request body
const cors = require('cors');              // Allow access from other domains

// Create Express application
const app = express();
const port = 5000; // Define the port where server will run

// Install Middleware (middleware that runs before route handler)
app.use(cors());                    // Enable CORS for all routes
app.use(bodyParser.json());         // Parse JSON in request body to JavaScript object

// Main route - test if server is working
app.get('/', (req, res) => {
  res.status(200).send('Hello! RESTful API is ready');
});

// Start server and listen for requests
app.listen(port, () => {
  console.log(`Server running at http://localhost:${port}`);
});

Code explanation:

• require() - Import required libraries
• express() - Create Express application instance
• app.use() - Install middleware that runs on every request
• app.get() - Define route for HTTP GET method
• res.status().send() - Send response with status code
• app.listen() - Start server and listen for requests

4.3 Start the Server#

node index.js

Open your web browser to http://localhost:5000 and you will see “Hello! RESTful API is ready”

5. User Resource#

Sample User Data

let users = [
  {
    id: 1,
    fname: "Karn",
    lname: "Yong",
    username: "karn.yong",
    email: "karn.yong@melivecode.com",
    avatar: "https://www.melivecode.com/users/1.png"
  }, {
    id: 2,
    fname: "Parkpoom",
    lname: "Chaisiriprasert",
    username: "parkpoom",
    email: "parkpoom@melivecode.com",
    avatar: "https://www.melivecode.com/users/2.png"
  }
];

Endpoints

5.1. Read All Users#

app.get('/users', (req, res) => {
  res.status(200).json(users);
});

Code explanation:

• app.get('/users', ...) - Create a route for GET request at path /users
• (req, res) => {...} - Function that executes when a request comes in
• req - Request object containing data from the client
• res - Response object for sending data back
• res.status(200) - Set HTTP status code 200 (OK)
• .json(users) - Send users data back in JSON format

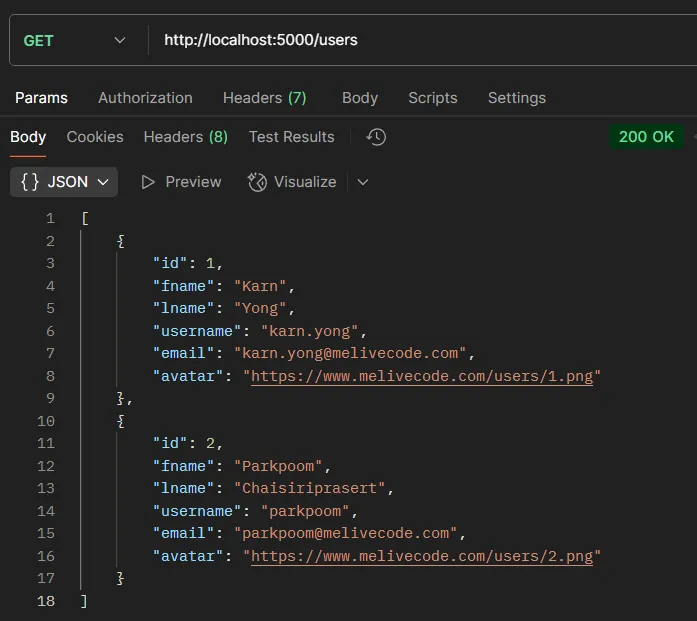

Test with Postman:

• Method: GET
• URL: http://localhost:5000/users
• Headers: Not required
• Body: Not required
• Expected Result: All users list (Array)

5.2. Read One User#

app.get('/users/:id', (req, res) => {
  const id = parseInt(req.params.id);
  const user = users.find(u => u.id === id);

  if (!user) {
    return res.status(404).json({ message: 'User not found' });
  }

  res.status(200).json(user);
});

Code explanation:

• :id - URL parameter that accepts dynamic values (e.g., /users/1, /users/123)
• req.params.id - Extract parameter value from URL
• parseInt() - Convert string to number
• users.find() - Find user that matches the condition (same id)
• if (!user) - Check case when data is not found
• return - Stop function execution immediately
• status(404) - HTTP status code for “Not Found”

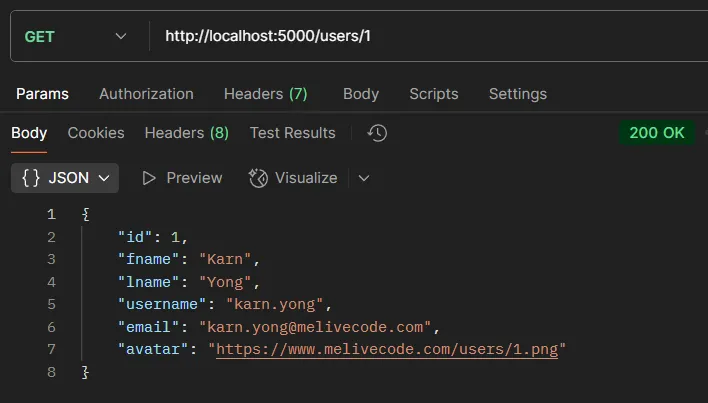

Test with Postman:

• Method: GET
• URL: http://localhost:5000/users/1
• Headers: Not required
• Body: Not required
• Expected Result: User data with ID 1

5.3. Create User#

app.post('/users', (req, res) => {
  const newUser = req.body;
  users.push(newUser);
  res.status(201).json(newUser);
});

Code explanation:

• app.post() - Create a route for POST request (for creating new data)
• req.body - Data sent in request body (via bodyParser.json())
• users.push() - Add data to array
• status(201) - HTTP status code for “Created” (successfully created)

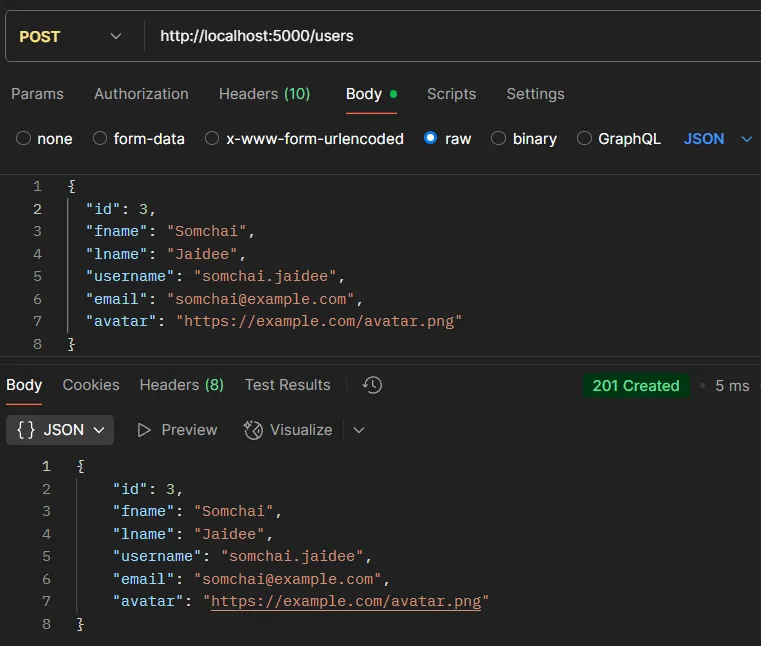

Test with Postman:

• Method: POST
• URL: http://localhost:5000/users
• Headers: Content-Type: application/json
• Body (JSON):

{
  "id": 3,
  "fname": "Somchai",
  "lname": "Jaidee",
  "username": "somchai.jaidee",
  "email": "somchai@example.com",
  "avatar": "https://example.com/avatar.png"
}

• Expected Result: New user data with ID

5.4. Update User#

app.put('/users/:id', (req, res) => {
  const id = parseInt(req.params.id);
  const index = users.findIndex(u => u.id === id);

  if (index === -1) {
    return res.status(404).json({ message: 'User not found' });
  }

  // Update data by combining old and new data together
  users[index] = { ...users[index], ...req.body };
  res.status(200).json(users[index]);
});

Code explanation:

• app.put() - Create a route for PUT request (for updating data)
• findIndex() - Find index of element matching condition (returns -1 if not found)
• { ...users[index], ...req.body } - Object spread syntax
  • ...users[index] - Spread all old data
  • ...req.body - Spread new data (will overwrite old data with same name)
• users[index] = - Update data in array at that index position

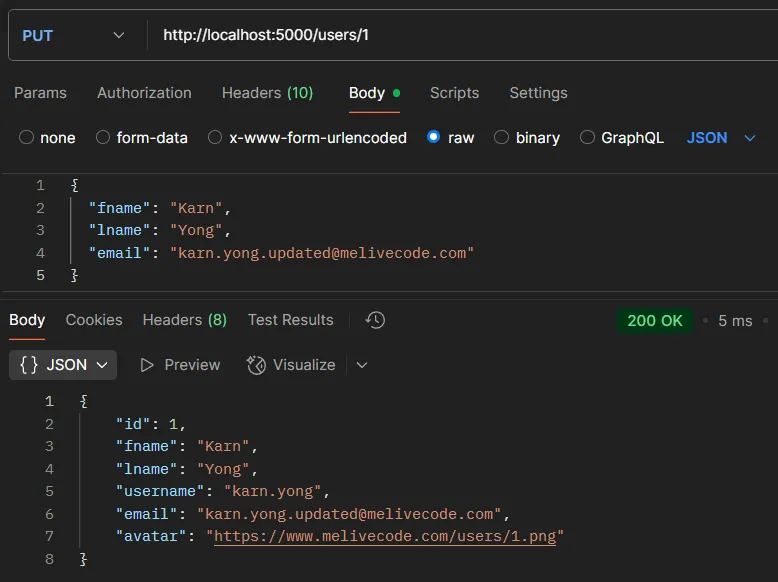

Test with Postman:

• Method: PUT
• URL: http://localhost:5000/users/1
• Headers: Content-Type: application/json
• Body (JSON):

{
  "fname": "Karn",
  "lname": "Yong",
  "email": "karn.yong.updated@melivecode.com"
}

• Expected Result: Updated user data

5.5. Delete User#

app.delete('/users/:id', (req, res) => {
  const id = parseInt(req.params.id);
  const index = users.findIndex(u => u.id === id);

  if (index === -1) {
    return res.status(404).json({ message: 'User not found' });
  }

  users.splice(index, 1);
  res.status(200).json({ message: `User with ID ${id} deleted successfully` });
});

Code explanation:

• app.delete() - Create a route for DELETE request (for deleting data)
• splice(index, 1) - Remove element from array
  • index - Position to start deleting
  • 1 - Number of elements to delete (delete 1 item)
• Template literal - ${id} used to insert variable into string

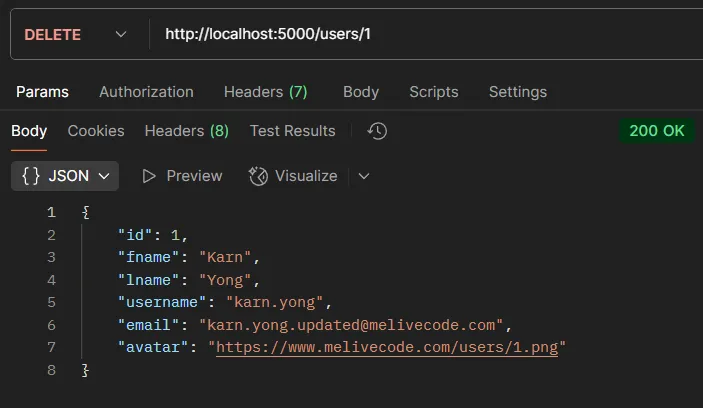

Test with Postman:

• Method: DELETE
• URL: http://localhost:5000/users/1
• Headers: Not required
• Body: Not required
• Expected Result: Deletion confirmation message

6. Product Resource#

Sample Product Data

let products = [
  { id: 1, name: "Laptop", price: 39999 },
  { id: 2, name: "Smartphone", price: 19999 },
  { id: 3, name: "Monitor", price: 7999 }
];

Endpoints

CRUD operations for products follow the same pattern as users

6.1. Read All Products#

app.get('/products', (req, res) => {
  res.status(200).json(products);
});

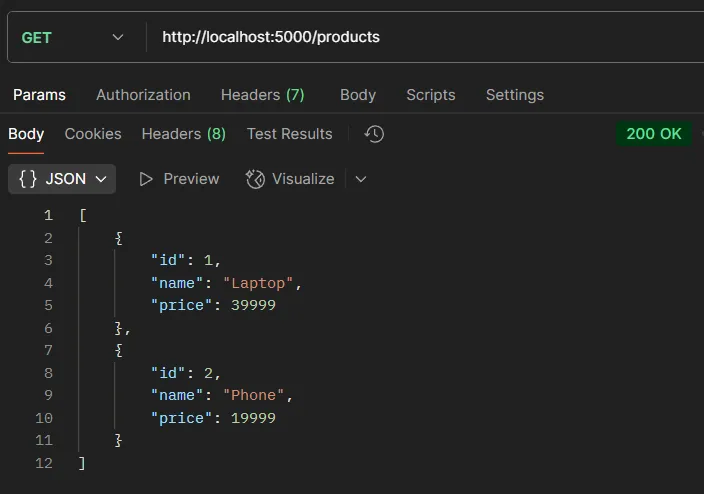

Test with Postman:

• Method: GET
• URL: http://localhost:5000/products
• Headers: Not required
• Body: Not required
• Expected Result: All products list (Array)

6.2. Read One Product#

app.get('/products/:id', (req, res) => {
  const id = parseInt(req.params.id);
  const product = products.find(p => p.id === id);

  if (!product) {
    return res.status(404).json({ message: 'Product not found' });
  }

  res.status(200).json(product);
});

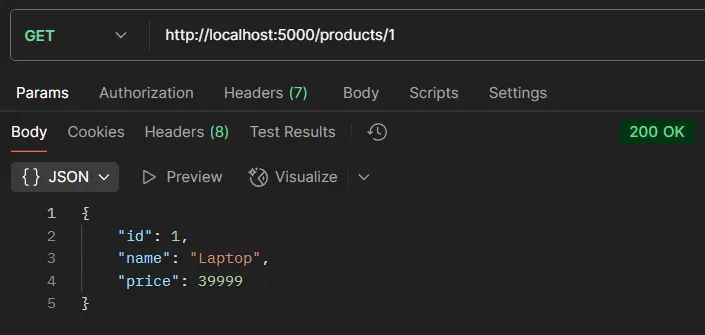

Test with Postman:

• Method: GET
• URL: http://localhost:5000/products/1
• Headers: Content-Type: application/json
• Expected Result: Product data with ID 1 (Status 200)

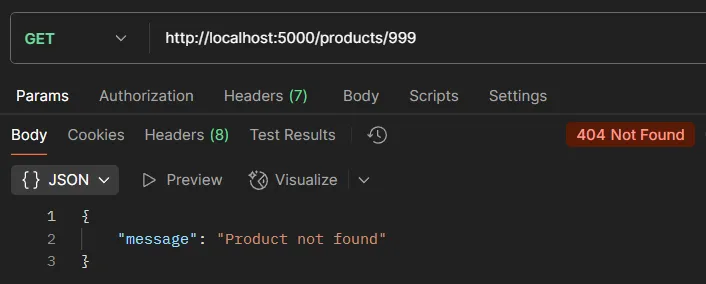

• Test Error: Use URL http://localhost:5000/products/999 to test case when product not found (Status 404)

6.3. Create Product#

app.post('/products', (req, res) => {
  const newProduct = req.body;
  products.push(newProduct);
  res.status(201).json(newProduct);
});

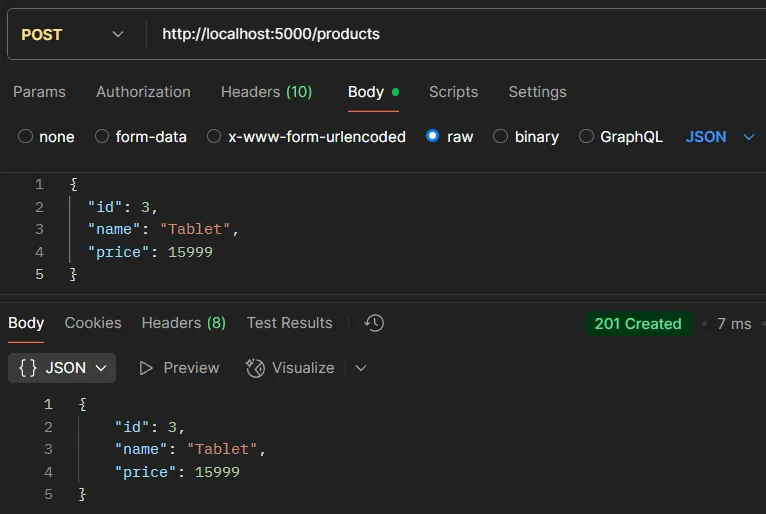

Test with Postman:

• Method: POST
• URL: http://localhost:5000/products
• Headers: Content-Type: application/json
• Body (JSON):

{
  "id": 4,
  "name": "Tablet",
  "price": 15999
}

• Expected Result: New product with ID (Status 201)
• Test Error: Send Body as {} to test invalid data (Status 400)

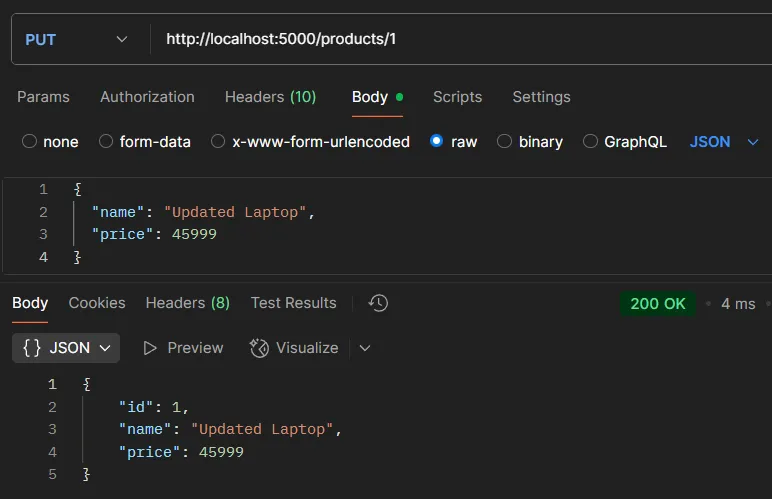

6.4. Update Product#

app.put('/products/:id', (req, res) => {
  const id = parseInt(req.params.id);
  const index = products.findIndex(p => p.id === id);

  if (index === -1) {
    return res.status(404).json({ message: 'Product not found' });
  }

  products[index] = { ...products[index], ...req.body };
  res.status(200).json(products[index]);
});

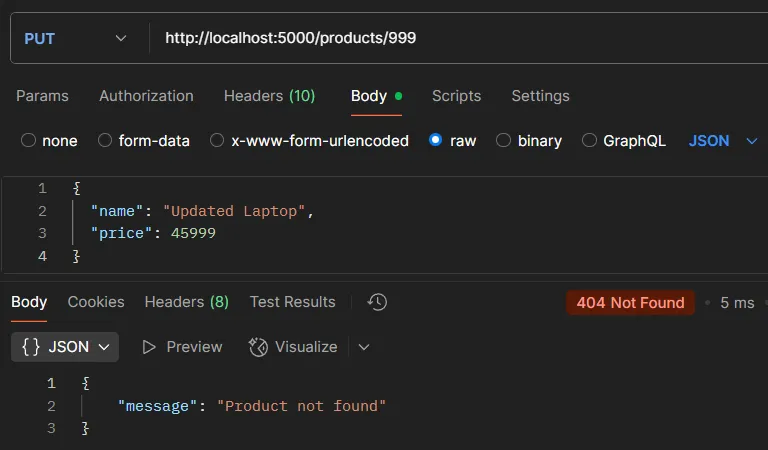

Test with Postman:

• Method: PUT
• URL: http://localhost:5000/products/3
• Headers: Content-Type: application/json
• Body (JSON):

{
  "name": "Updated Laptop",
  "price": 45999
}

• Expected Result: Updated product data (Status 200)

• Test Error: Use URL http://localhost:5000/products/999 to test case when product not found (Status 404)

6.5. Delete Product#

app.delete('/products/:id', (req, res) => {
  const id = parseInt(req.params.id);
  const index = products.findIndex(p => p.id === id);

  if (index === -1) {
    return res.status(404).json({ message: 'Product not found' });
  }

  products.splice(index, 1);
  res.status(200).json({ message: `Product ${id} deleted successfully` });
});

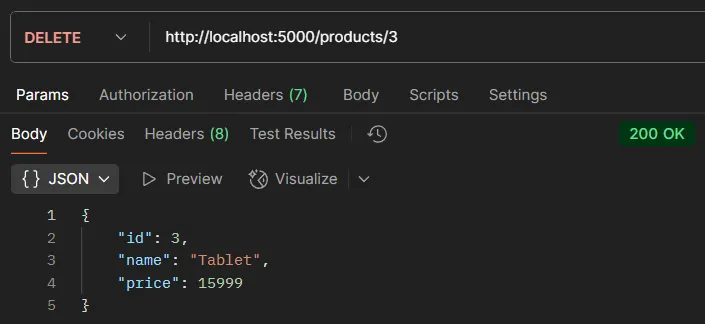

Test with Postman:

• Method: DELETE
• URL: http://localhost:5000/products/3
• Headers: Content-Type: application/json
• Body: Not required
• Expected Result: Deletion confirmation message (Status 200)

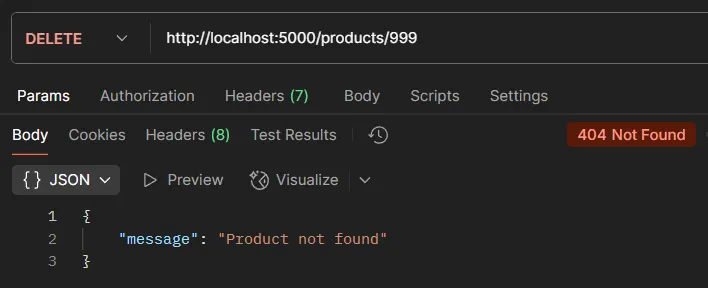

• Test Error: Use URL http://localhost:5000/products/999 to test case when product not found (Status 404)

7. Order Resource#

Sample Order Data

let orders = [
  { id: 1, userId: 1, productIds: [1, 2] },
  { id: 2, userId: 2, productIds: [2] },
  { id: 3, userId: 1, productIds: [2, 3] }
];

Endpoints

7.1. Read All Orders#

app.get('/orders', (req, res) => {
  // Create order data with complete details
  const detailedOrders = orders.map(order => {
    // Find user who placed the order
    const user = users.find(u => u.id === order.userId);

    // Find all products in the order
    const productsInOrder = order.productIds.map(pid =>
      products.find(p => p.id === pid)
    );

    // Return reformatted data
    return {
      id: order.id,
      user: user,
      products: productsInOrder
    };
  });

  res.status(200).json(detailedOrders);
});

Code explanation:

• orders.map() - Transform array of orders into new format
• users.find(u => u.id === order.userId) - Find user from userId in order
• order.productIds.map() - Loop through all productIds
• products.find(p => p.id === pid) - Find product data from each productId
• return { ... } - Create new object with complete data

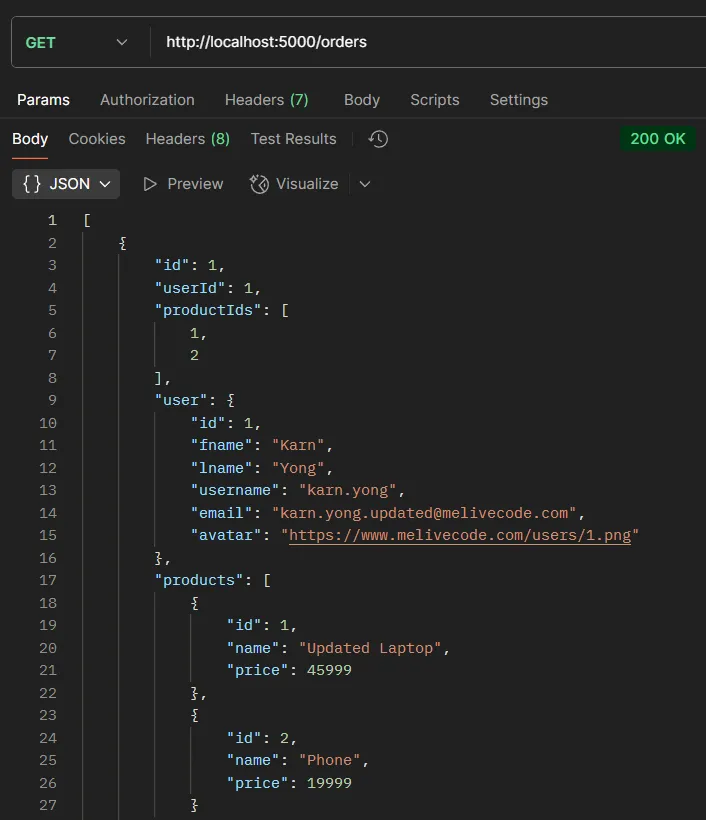

Test with Postman:

• Method: GET
• URL: http://localhost:5000/orders
• Headers: Content-Type: application/json
• Body: Not required
• Expected Result: All orders list with user and product details (Status 200)

7.2. Read One Order#

app.get('/orders/:id', (req, res) => {
  const id = parseInt(req.params.id);
  const order = orders.find(o => o.id === id);

  if (!order) {
    return res.status(404).json({ message: 'Order not found' });
  }

  const user = users.find(u => u.id === order.userId);
  const productsInOrder = order.productIds.map(pid =>
    products.find(p => p.id === pid)
  );

  res.status(200).json({
    id: order.id,
    user: user,
    products: productsInOrder
  });
});

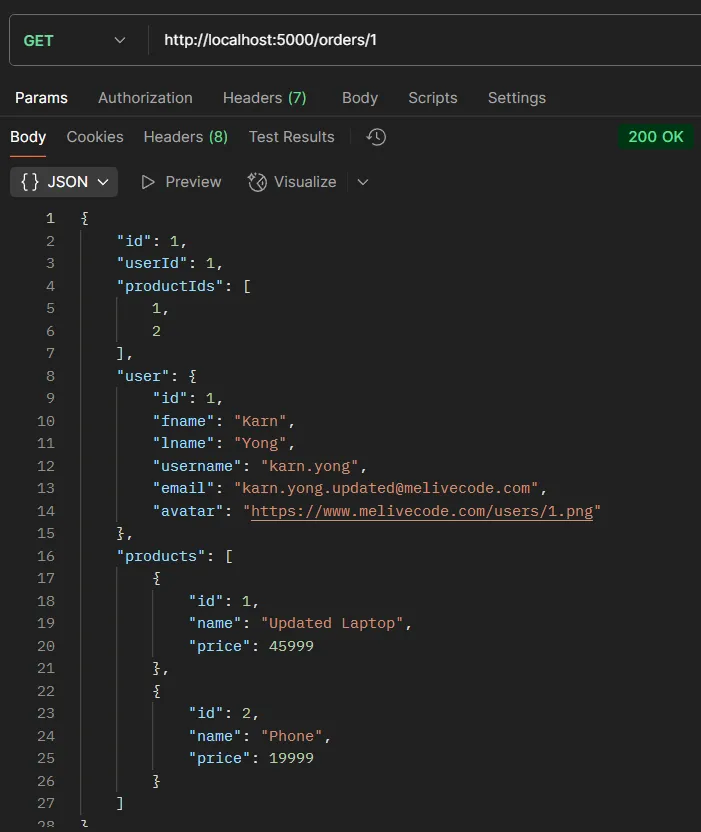

Test with Postman:

• Method: GET
• URL: http://localhost:5000/orders/1
• Headers: Content-Type: application/json
• Body: Not required
• Expected Result: Order data ID 1 with user and product details (Status 200)

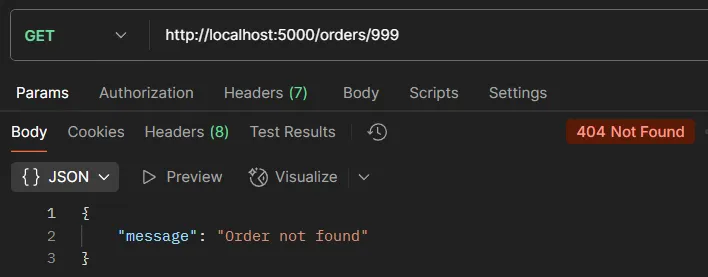

• Test Error: Use URL http://localhost:5000/orders/999 to test case when order not found (Status 404)

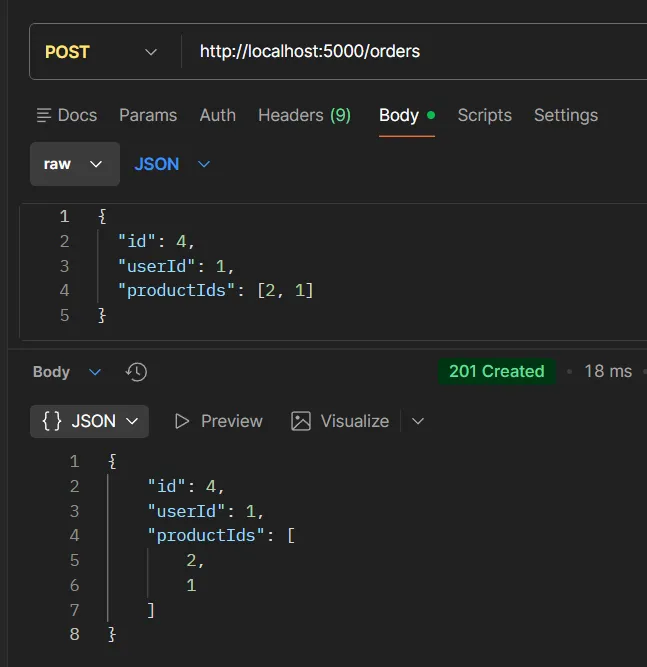

7.3. Create Order#

app.post('/orders', (req, res) => {
  const newOrder = req.body;

  orders.push(newOrder);
  res.status(201).json(newOrder);
});

Test with Postman:

• Method: POST
• URL: http://localhost:5000/orders
• Headers: Content-Type: application/json
• Body (JSON):

{
  "id": 4,
  "userId": 1,
  "productIds": [2, 1]
}

• Expected Result: New order with ID (Status 201)

7.4. Update Order#

app.put('/orders/:id', (req, res) => {
  const id = parseInt(req.params.id);
  const index = orders.findIndex(o => o.id === id);

  if (index === -1) {
    return res.status(404).json({ message: 'Order not found' });
  }

  orders[index] = { ...orders[index], ...req.body };
  res.status(200).json(orders[index]);
});

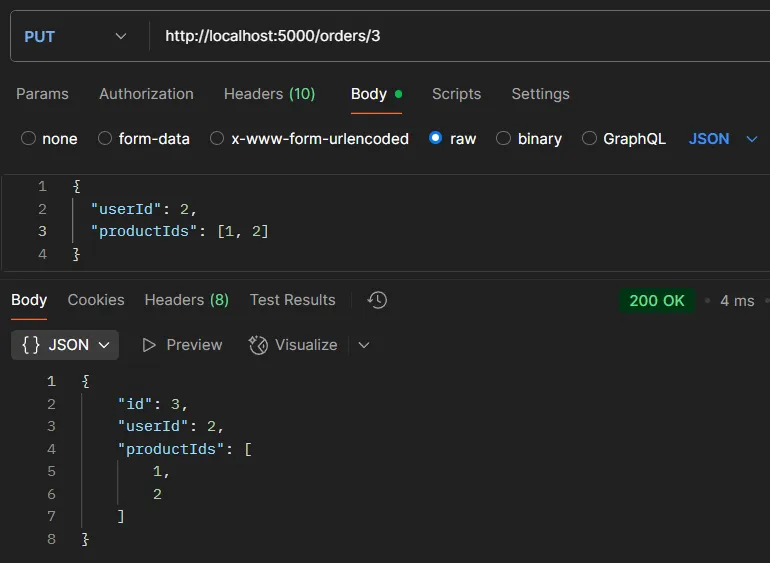

Test with Postman:

• Method: PUT
• URL: http://localhost:5000/orders/3
• Headers: Content-Type: application/json
• Body (JSON):

{
  "userId": 2,
  "productIds": [1, 2]
}

• Expected Result: Updated order data (Status 200)

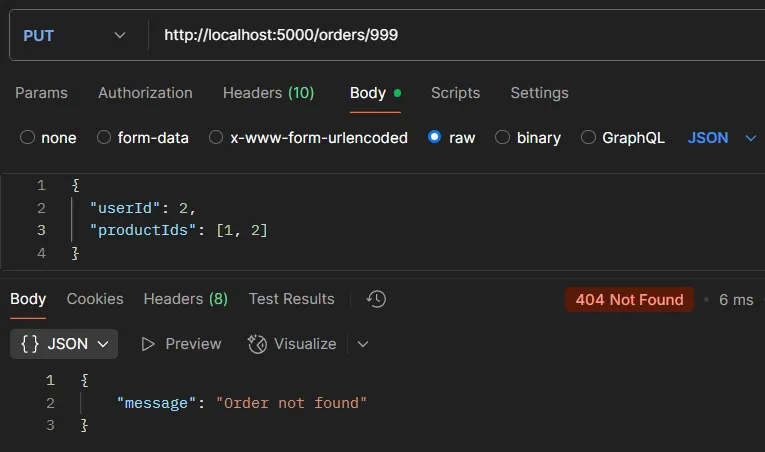

• Test Error: Use URL http://localhost:5000/orders/999 to test case when order not found (Status 404)

7.5. Delete Order#

app.delete('/orders/:id', (req, res) => {
  const id = parseInt(req.params.id);
  const index = orders.findIndex(o => o.id === id);

  if (index === -1) {
    return res.status(404).json({ message: 'Order not found' });
  }

  orders.splice(index, 1);
  res.status(200).json({ message: `Order ${id} deleted successfully` });
});

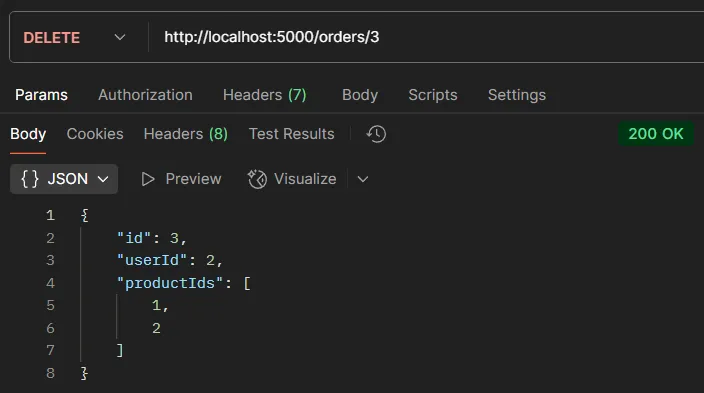

Test with Postman:

• Method: DELETE
• URL: http://localhost:5000/orders/3
• Headers: Content-Type: application/json
• Body: Not required
• Expected Result: Deletion confirmation message (Status 200)

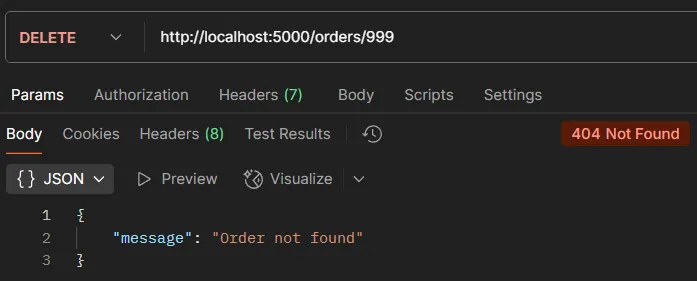

• Test Error: Use URL http://localhost:5000/orders/999 to test case when order not found (Status 404)

8. Nested Resources#

8.1. Get Orders by User#

app.get('/users/:id/orders', (req, res) => {
  const userId = parseInt(req.params.id);
  const user = users.find(u => u.id === userId);

  if (!user) {
    return res.status(404).json({ message: 'User not found' });
  }

  // Filter orders that belong to this user only
  const userOrders = orders.filter(order => order.userId === userId);
  res.status(200).json(userOrders);
});

Code explanation:

• Nested Resource Pattern - /users/:id/orders shows the relationship that “orders belong to user”
• filter() - Filter data by condition (returns new array with only matching data)
• order.userId === userId - Condition for filtering (orders with matching userId)

Test with Postman:

• Method: GET
• URL: http://localhost:5000/users/1/orders
• Headers: Content-Type: application/json
• Body: Not required
• Expected Result: Orders list of user ID 1 (Status 200)

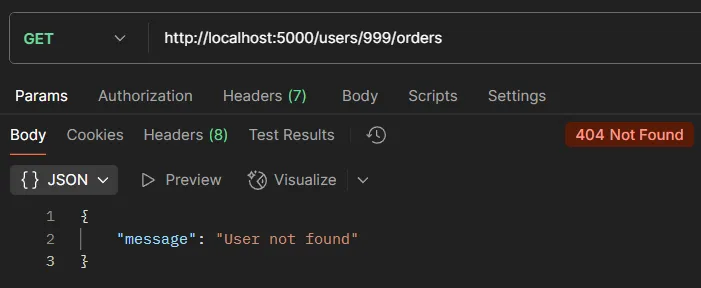

• Test Error: Use URL http://localhost:5000/users/999/orders to test case when user not found (Status 404)

8.2. Get Products in an Order#

app.get('/orders/:id/products', (req, res) => {
  const orderId = parseInt(req.params.id);
  const order = orders.find(o => o.id === orderId);

  if (!order) {
    return res.status(404).json({ message: 'Order not found' });
  }

  const productsInOrder = order.productIds.map(pid =>
    products.find(p => p.id === pid)
  );

  res.status(200).json(productsInOrder);
});

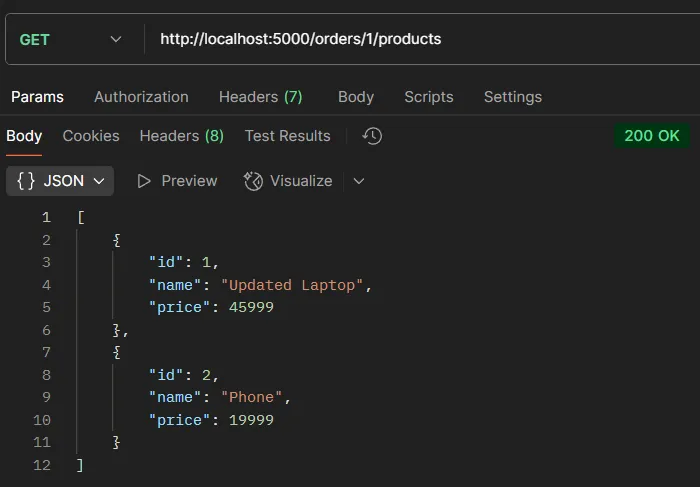

Test with Postman:

• Method: GET
• URL: http://localhost:5000/orders/1/products
• Headers: Content-Type: application/json
• Body: Not required
• Expected Result: Products list in order ID 1 (Status 200)

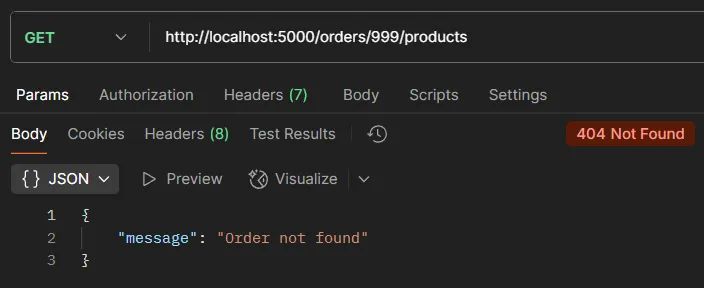

• Test Error: Use URL http://localhost:5000/orders/999/products to test case when order not found (Status 404)

9. Summary#

What you learned from this content:

• URI Design Principles following REST standards
• API Creation with Node.js and Express
• CRUD Operations for multiple resource types
• Nested Resources for related data
• API Testing with Postman

Benefits of RESTful API Design

• Easy to Understand - Clear and standard URIs
• Flexibility - Easy to extend
• Separation of Concerns - Client and Server work independently
• Reusability - Single API supports multiple applications
